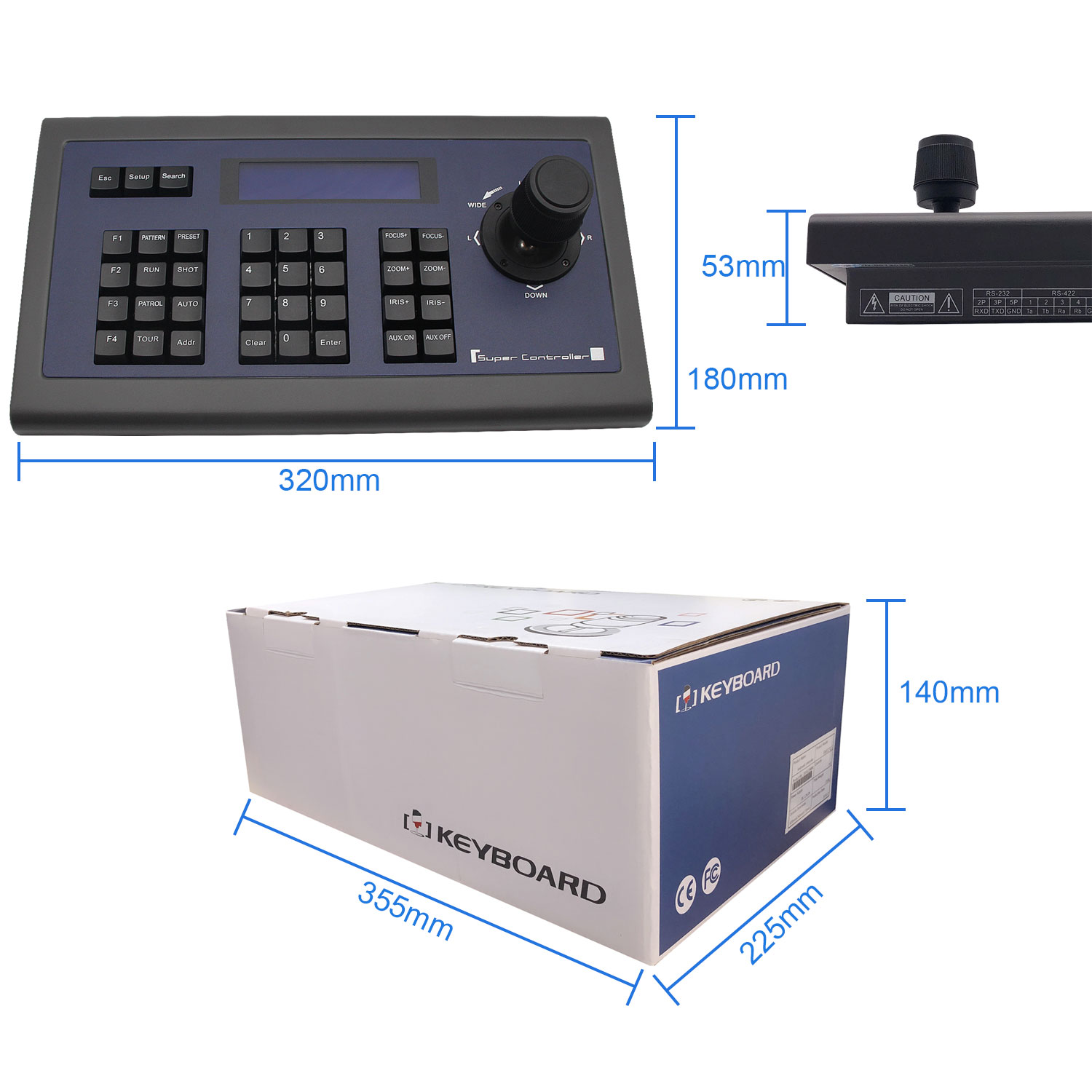

Introduction for Joystick Keyboard Controller
1. Specially design for SONY video conference camera, completely compatible with VISCA protocol
2. Can set the address code of SONY video conference camera independently
3. Refurbish the program on line, compile corresponding promotion program according to the protocol and command provided by
customer, customer connect keyboard controller through RS485 interface on the computer to update firmware
4. Unique control code learning function, customer can revise the control code command voluntarily
5. Multifold communication mode: RS485,RS422,RS232,10M internet(select to order),USB(select to order)
6. All parameters are set by key-press operation procedure, it is convenient and fast
7. Control the rotation of speed dome camera and swinging angle of joystick with nonpolar variable speed control to embody speed dome camera’s rotating speed real-time.
Introduction for 20X optical zoom camera:
1. 20x optical zoom IP camera
2. Sleek and intelligent design
3. Crystal clear HD1080P image quality
4. Accurate, smooth and silent PTZ Movement
5. 3G-SDI, RJ45, HDMI USB Video Outputs
6. Preset: 9 via IR remote setting (256 via RS232)
7. Wide field of view with no video distortion
8 . 1/3 inch high quality, 2.38MP (16:9) CMOS sensor
9. Superior quality with Full Glass Lens Material
10. Support ceiling mount, wall mount and tripod mount (Reverse mountable)
11. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Parameters:
| Model | 20x optical zoom |
| Sensor | 1/3 HD CMOS |
| Effective pixel | 2.38MP |
| FOV | 55.5 degree |
| Focal length | f=4.34-35.17mm |
| Resolution | 1080p(1920*1080)/720p(1280*720) |
| HD interface | USB2.0, HDMI, SDI, RJ45 |
| Audio input port | 3.5mm |
| Signal system | NTSC/PAL |
| Preset | 9 for remote control, 255 for PELCO, 64 for VISCA |
| Control Protocol | VISCA, PELCO-D, PELCO-P |
| Control interface | RS232, RS485 |
| Items | Main Parameters |
| Model | TEVO-KZ1 High Quality Keyboard Controller |
| Protocol | Pelco-D, Pelco-P, VISCA |
| Baud rate(bps) | 1200bps, 2400bps, 4800bps, 9600bps, 19200bps |
| Control Address | Control 255pcs PTZ at the most, address code:0-254 |
| Communication Mode | RS485 half-duplex, RS422 full-duplex, RS232 serial port
10M internet(select to order),USB(select to order) |
| Communication Range | RS485, RS422: 1200m, RS232: 10m |
| Cascade connection number | 16 sub-control at most, controller ID:0-15 |
| Joystick | 3D(control: up, down, left, right, zoom) |
| Interface Mode | 10PIN pressing line port, DB9 connector |
| Display | Blue LCD screen |
| Warning Tone | Key-touch beep on/off |
