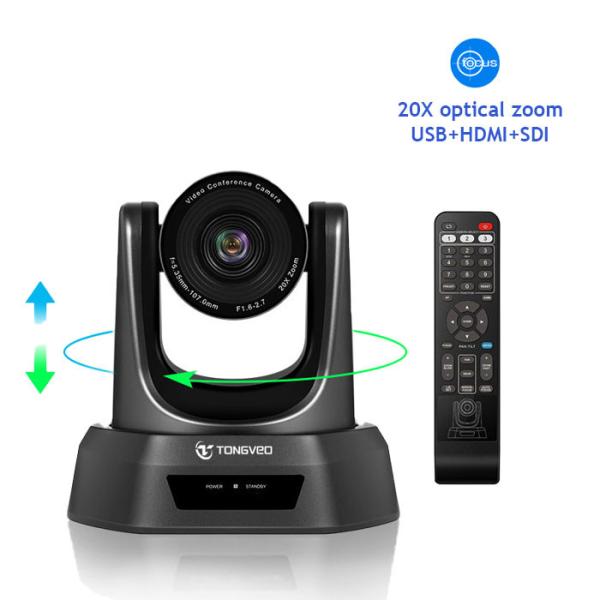

20X Optical Zoom Auto Focus Tenveo PTZ Camera Long Distance Education

Name: 20X Optical Zoom Auto Focus Tenveo PTZ Camera Long Distance Education
Brand: Tongveo
Price: 1 USD

China 20X Optical Zoom Auto Focus Tenveo PTZ Camera Long Distance Education factory

Supply Ability : 50000PCS Per Year

Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram

Brand Name : Tongveo

Model Number : TEVO-NV20A

Certification : ISO9001,CE,FCC,ROHS

Place of Origin : China

MOQ : 1 piece

Delivery Time : 1-10 working days

Packaging Details : Foam packaging inside; standard carton packaging outside

Model NO. : TEVO-NV20A HD camera

Sensor : 1/3 Inch HD CMOS

Effective Pixel : 2.38 Mega Pixel

Zoom : 20X Optical Zoom

Horizontal Angle : 54.7 Degree

Video Output : USB, HDMI, SDI

Control Temernal : RS-232,RS485

Resolution : 1080P

Contact Now

Long Distance Education 20X Optical Zoom Auto Focus Video Conference Camera

* 20X optical zoom
* Sleek and intelligent design
* Crystal clear HD1080P image quality
* Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
* Wide field of view with no video distortion(Pan:350°,Tilt: -35°~+55°)
* 1/3 inch high quality, 2.1MP (16:9)CMOS sensor
* Superior quality with Full Glass Lens Material
* 3G-SDI, HDMI , USB Video Output
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth

Model No	TEVO-NV20A
Image Sensor	1/3 inch HD CMOS
Effective Pixel	2.38 mega pixel
Horizontal Resolution	1080P60/50/30/25,1080i60/50,720P60/50
Focal Length	138 degree fixed focus wide angle
Signal Standard	NTSC/PAL
Zoom	Auto focus
Horizontal View Angle	Near-end 54.7°~Far-end 3.3°
Gain Control	Auto/Manual
SNR Ratio	8 to 1/10000s (auto)
Preset Position	IR remote control supports 9 presets, PELCO Protocol supports 255 presets; VISCA Protocol supports 64 presets
Pan/Tilt Movement Range	Pan: +-175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S)
Control Protocol	VISCA,PELCO-D,PELCO-P (RS-232,RS485)
Control Teminal	USB, RS-232, RS-485
Video Output	USB 2.0, SDI, HDMI
Noise Reduction	2D/3D
Work Temperature	-10°~50°
Work Humidity	-20°~60°
Baud Rate	38400/9600bps
Address Set	1~255
Decoder	Built-in decoder
Installation	Support desktop, Tripod, Wall mount and ceiling mount
Video Compression Format	YUV, MJPEG,H.264
Accessories	DC 12V power adaptor, IR remote control,manual, ceiling brackets and screws.
Size:	182182182mm/262233220(before/ after packing)
